Logging in Alectrona Patch

Alectrona Patch automatically logs messages to the following targets:

A local log file (truncated so as to not exceed 5 MB)
Apple's Unified Logging System

Local Log File

To some Mac Admins, the local log file could be the more familiar approach for accessing logs.

Given the following command, the sample logging output can be expected:

sudo patch install signal

An updated version of Signal is available; installed: 6.10.1, catalog: 6.11.0.
Downloading the Signal install media...
Successfully verified designated requirement of Signal.app.
Signal is running, alerting ryan of pending update.
ryan chose to continue, killing Signal processes...
Installing Signal...
Successfully installed Signal version 6.11.0.
Relaunching Signal for ryan.

The above output is shown in Terminal while running, but is also always sent to the local log file with timestamps.

The local log file is located at the following path:

/var/log/alectrona-patch.log

Need the last 300 lines of the log file?

tail -n 300 /var/log/alectrona-patch.log

Apple's Unified Logging System

Apple's unified logging system is designed, with performance in mind, to capture telemetry across every level of macOS.

This system centralizes the storage of log data in memory and on disk, rather than writing that data to a text-based log file. Apple

Unified logs can be filtered based on process name, log level, message content, and much more. Because of this, we can ship extremely detailed information to logs making it easier for Mac Admins to find exactly what they are looking for.

Centralized Log Parsing!

Many Security Information and Management (SIEM) systems can ingest macOS unified logs for centralized aggregation, parsing, and alerting. 🎉

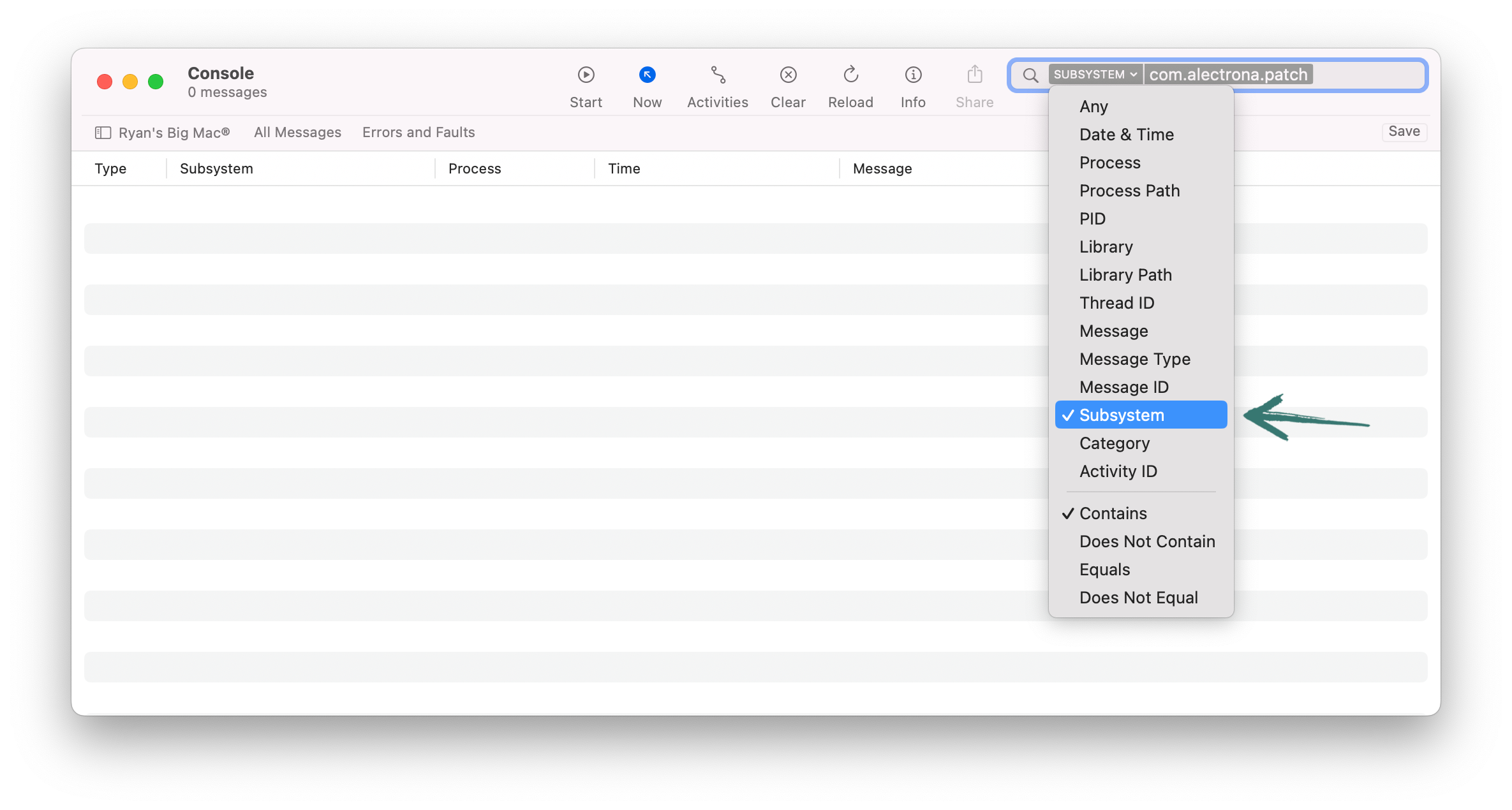

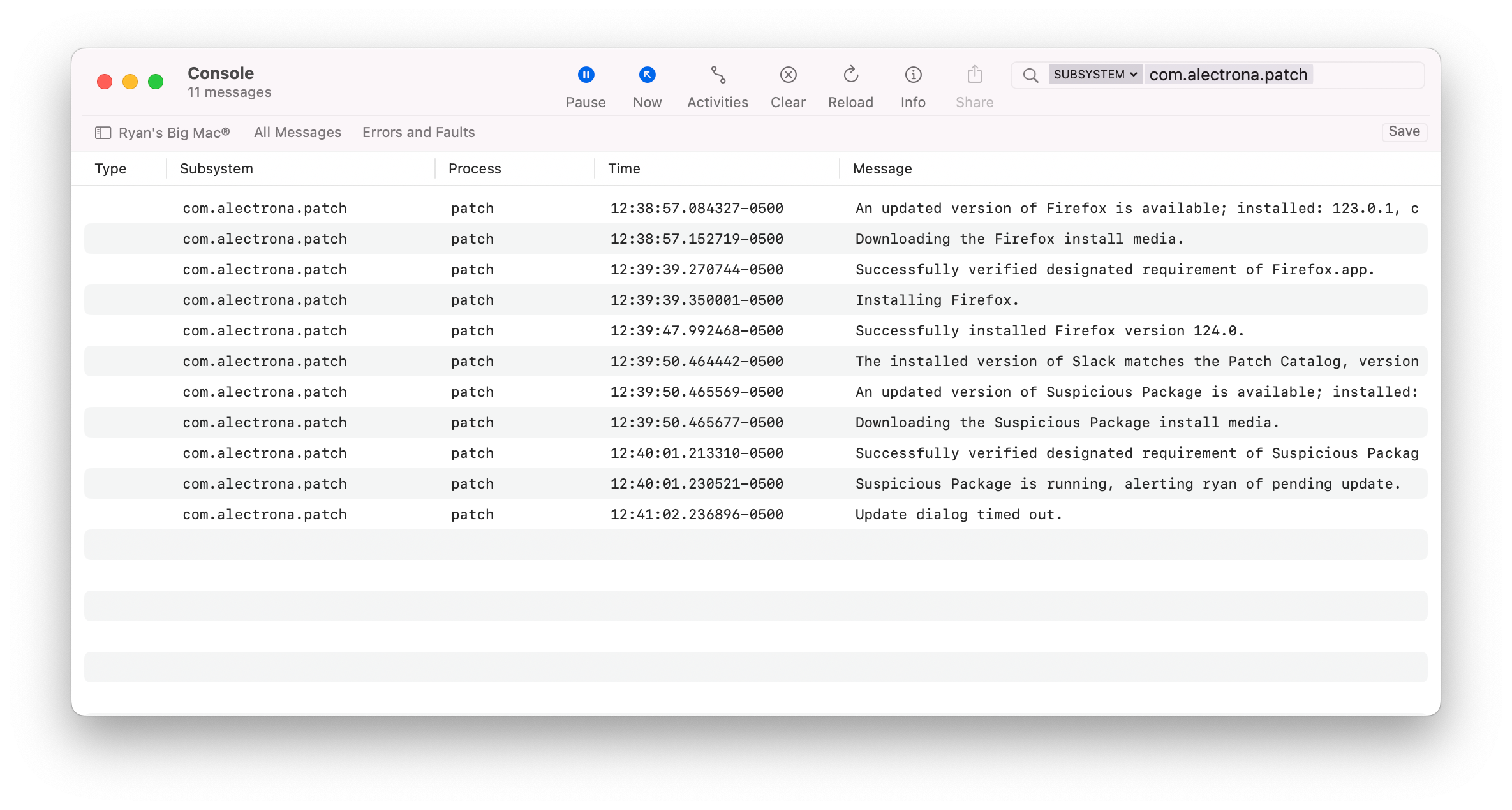

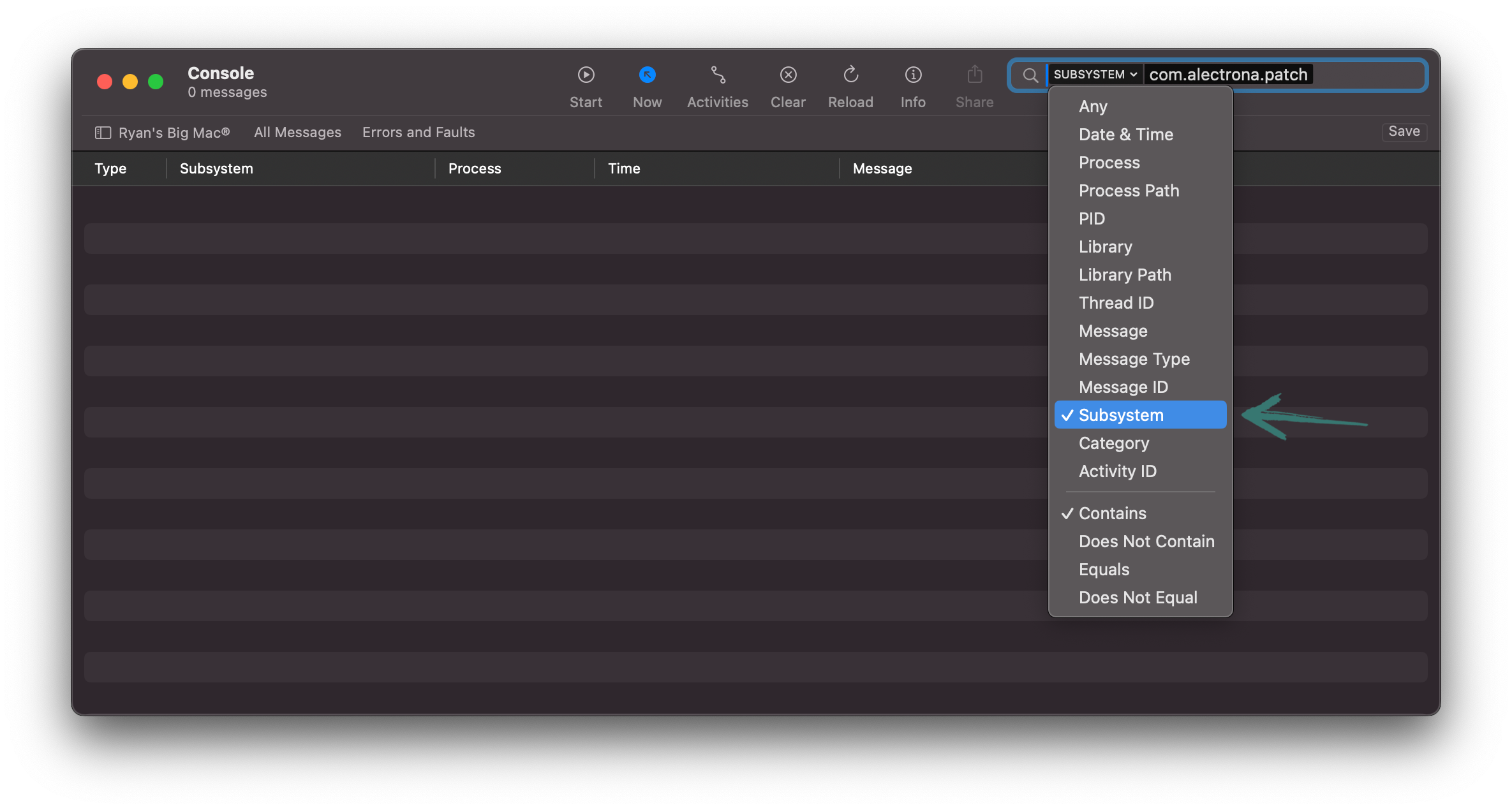

Using Terminal for Unified Logs

You can use Apple's built-in log command to view unified logs for Alectrona Patch.

The three subsystems for Alectrona Patch are:

com.alectrona.patch
com.alectrona.patch-agent
com.alectrona.patch-notifier

Below are a few example commands to view logs for all Alectrona Patch components:

# Stream real-time logs down to info level for all Alectrona Patch components
log stream --predicate 'subsystem BEGINSWITH "com.alectrona.patch"' --info

# Show the last 5 minutes of the default log type for all Alectrona Patch Components
log show --predicate 'subsystem BEGINSWITH "com.alectrona.patch"' --last 5m

# Show all available error logs for the Patch CLT only
log show --predicate 'subsystem == "com.alectrona.patch" AND messageType == error'
